CAD Models - Custom Mount Bracket of the Trelino Evo Toilet
Learn how to build a custom mount bracket for the Trelino Evo M separation toilet on Front Runner roof racks. Complete engineering plans with CAD files, material specs, and installation guide. Accounts for T-slot variations up to 205mm.
When being on the road or in the outback, there is always one or more desires to be fulfilled. One of which is to go to the toilet, even in rough terrain and under difficult conditions. When you do not want to dig a hole due to finish your business, you can choose a separations toilet which is very handy for this kind of overland travel. The liquid part can be disposed safely and the solid content can be disposed with the regular trash. This is safe and without leaving anything bad smelling behind, it safes the environment & the ground water and is hygienic.
For our business, we use this separation toilet from Trelino. Its great for overlanding and while enjoying nature and keeping the campground clean for the next traveler is important. This toilet works wonderful, without water and even in the most secluded places!

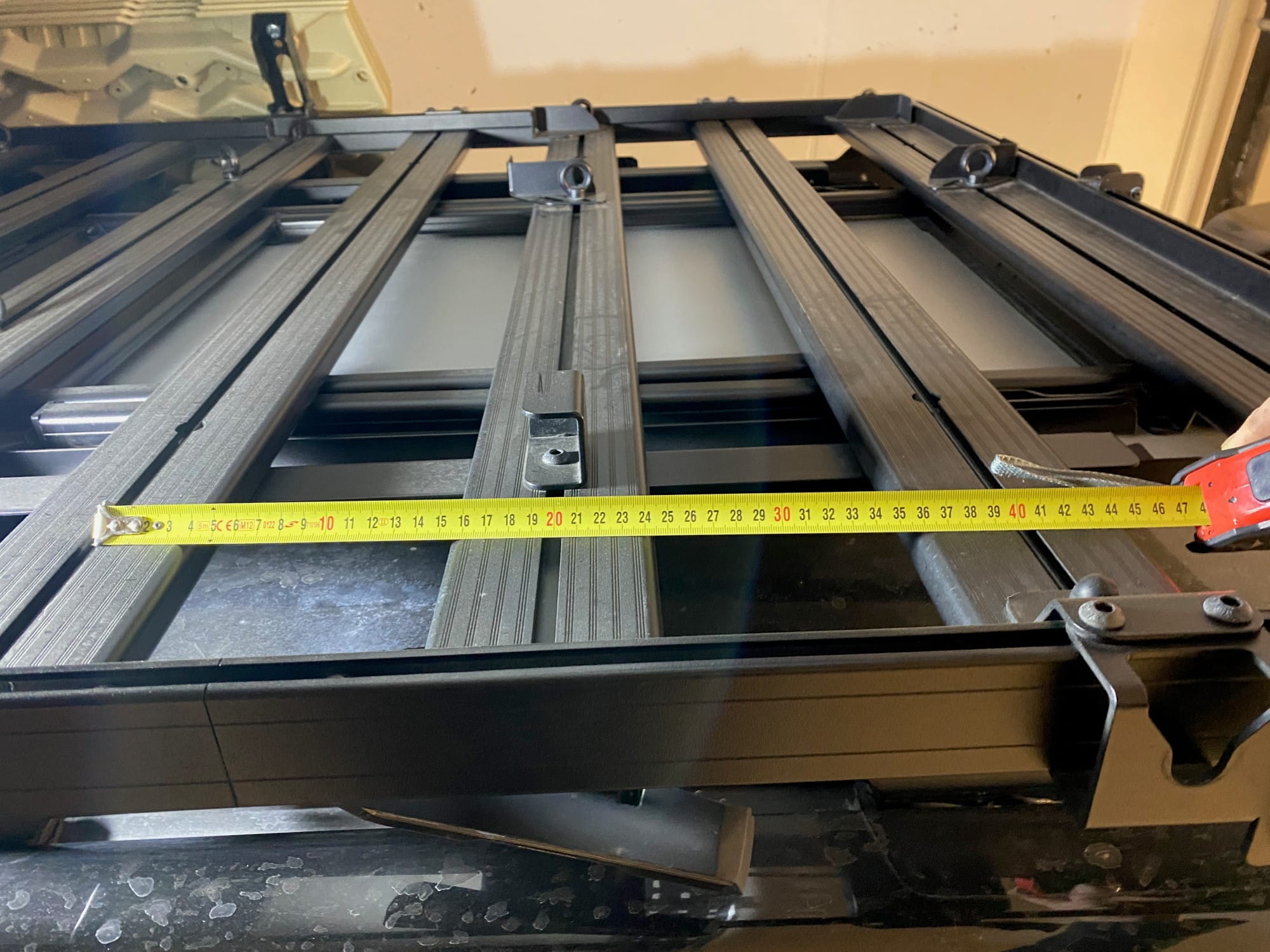

For keeping this box safely positioned on our Front Runner roof rack, I needed a new mount bracket adjusting to the slot positions of the rack. Even though, Front Runner states that the distance between the 9 mm T-slot for the M8 screw is exactly 200 mm - it is not. It can vary up to 205 mm. Therefore it was necessary to use long holes to account for any variations. Also, the mount bracket was made from 2 mm unalloyed steel.

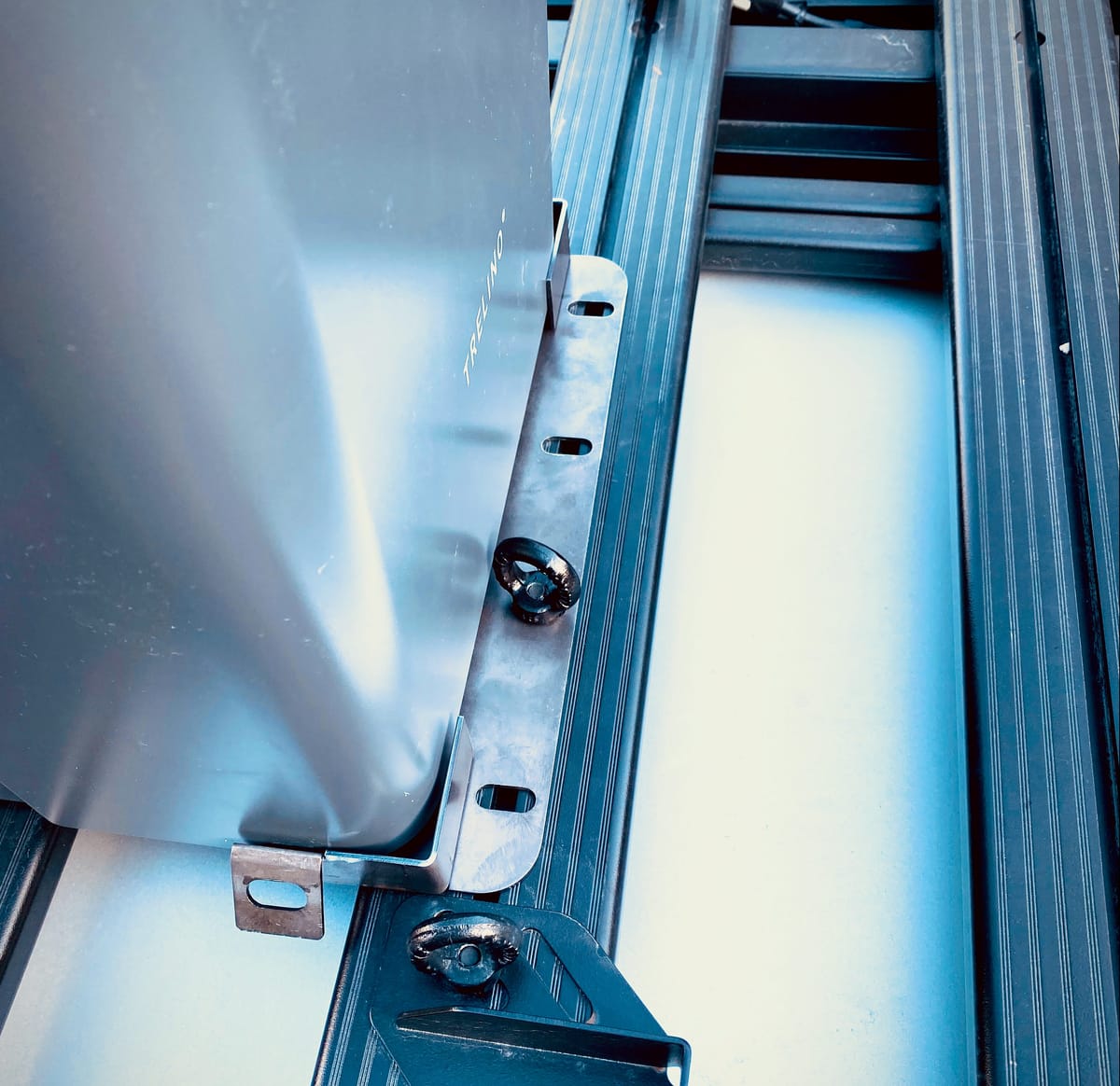

Assembling the not yet powder-coated sheet metal to the Rack and seeing if the part fits well with the Trelino. Fits well, doesn't it?

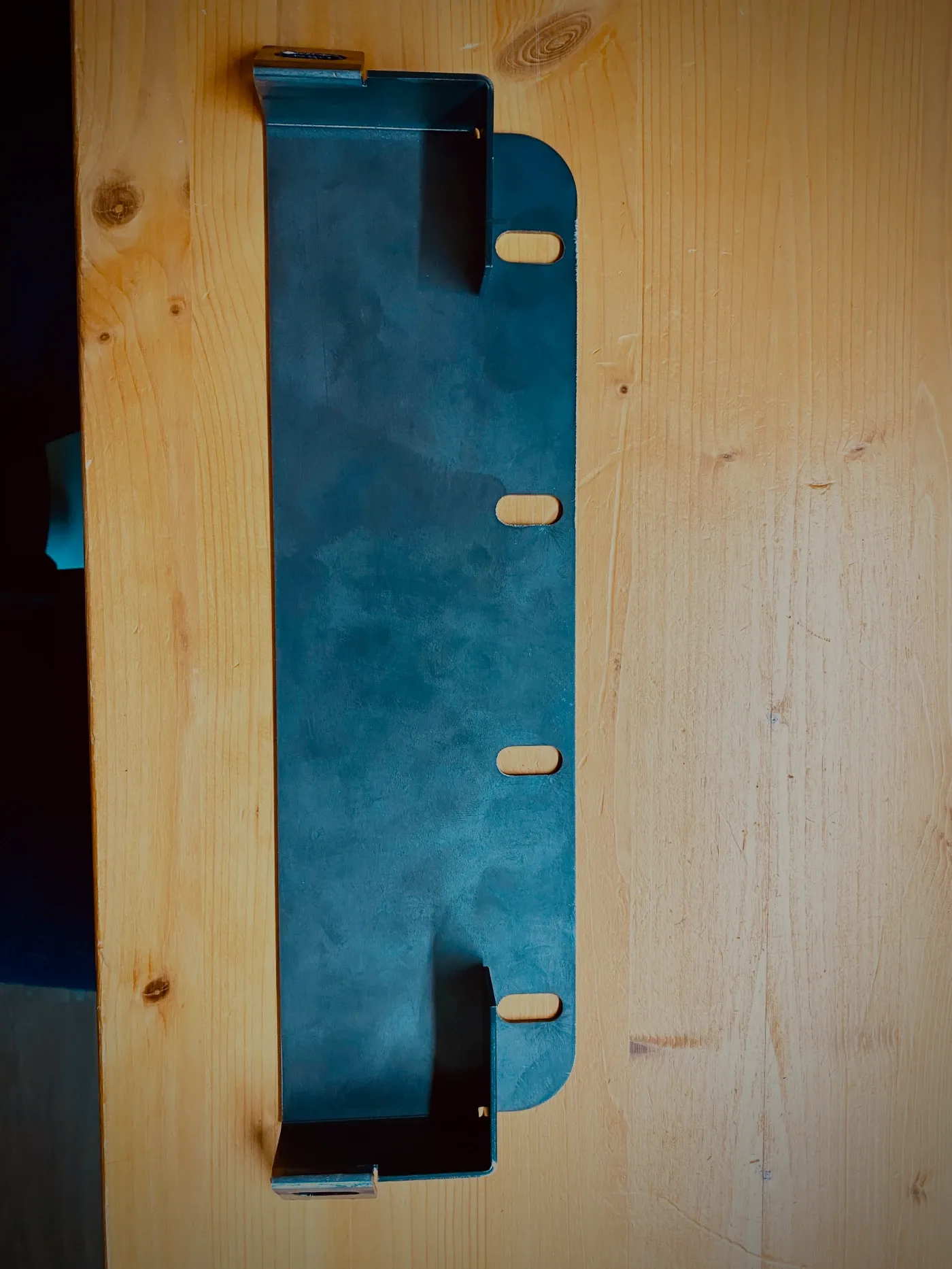

Below ist the finished and powder-coated part. Looks great!
The bracket is made of regular, unalloyed steel and was finally powder-coated. You will need two of them and with the grey straps from Front Runner, the toilet can be fixed nicely to your Slimline II rack.

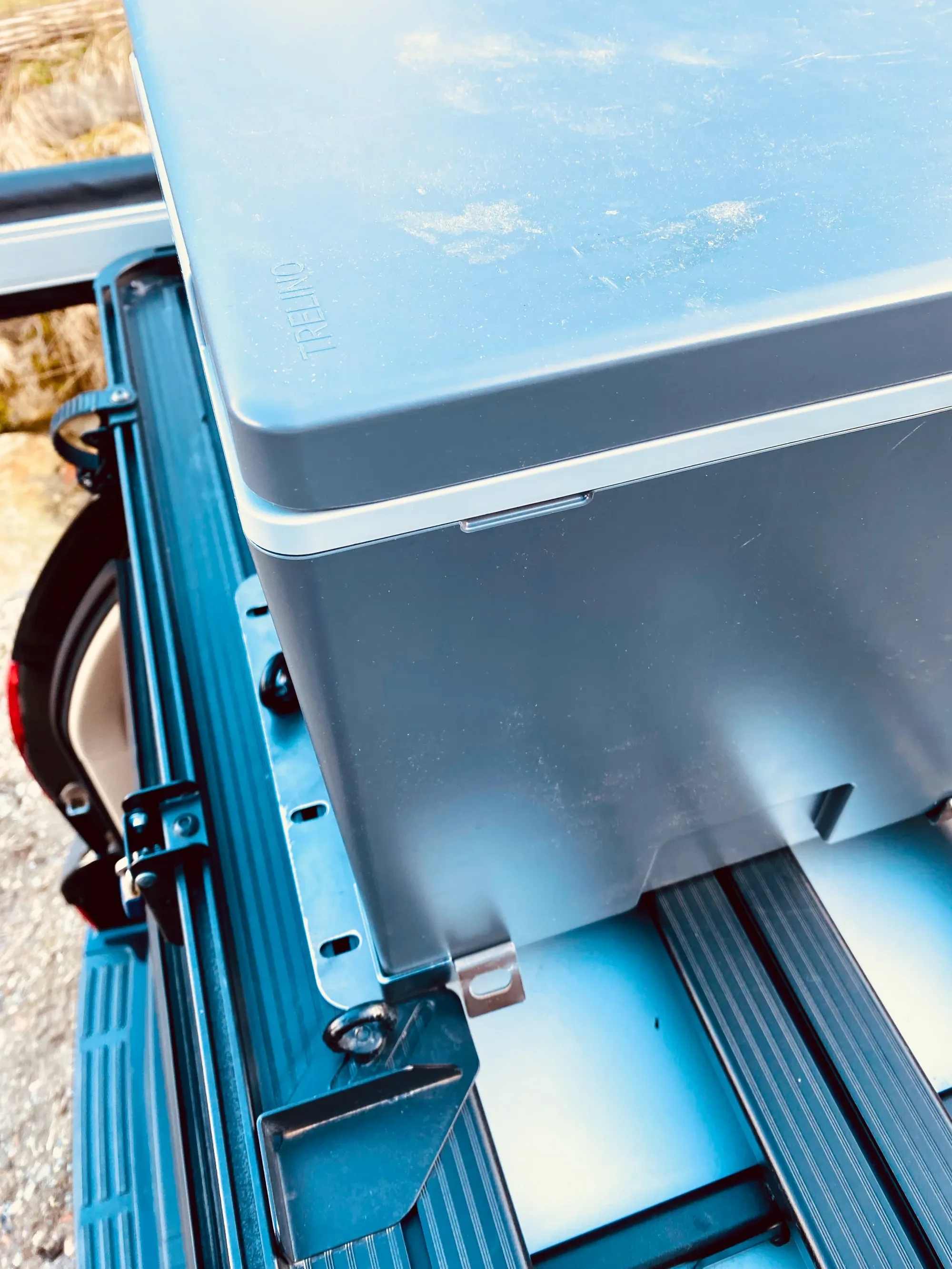

The toilet is fixed with two stretch straps which is more than sufficient. You can download the 3D models as well as the 2D sheet metal drawings below.
Need a Custom Design for Your Rig?
Under WeissExplorers, I offer various digital engineering services. For more information and inquiries, just contact me or fill out the form below! These offers include:
CAD Design
Parametric 3D models and assemblies in Solid Edge, engineered for durability, field-repairability, and easy access to serviceable components. From early concept geometry to release-ready documentation.
Structural Analysis
FEM-based stress and deformation analysis for mechanical components and weldments. Useful when a design needs to be validated before it goes into production — or when something failed and you need to know why.
... and CFD Simulations.
For more information, tell me about your awesome project!
Download the Production-Ready CAD Files
To save you hours of measuring and designing, I am sharing the native 3D files for this bracket. You can upload these directly to laser-cutting services (like Laserhub or GeersCut) to get your own part manufactured.
What’s included in the package:
- PDF File: Drawing with dimensions for your workshop.
- DXF File: Ready-to-use 2D export for laser cutting.
- DWG File: Native 2D/3D AutoCAD format.
Below you will find the drawing and the CAD models available for download…
